Advanced medical helmet

KRANOS

lights

• Medical LED with tilt
• Ambient lighting

display

• Silicon - Organic Light Emitting Diode
• See-through holographic lenses (waveguides)

audio
technology

• Noise cancellation*
• Custom high dynamic range amplifier
• Live recording and transcription of written notes*
• Voice activated commands

sensors

• Inward-facing microphone
• Ambient outter microphone
• Internal stereo-sound speaker
• External front-facing speaker
• Motion-detecting accelerometer

battery

• Main replaceable battery
• Secondary back-up battery (allows for non-interrupted operation)
• Up to 10 hours on a single charge (Up to 6 hours with video streaming, recordings and lights ON)

connectivity

• Bluetooth 5.0
• 2.4 GhZ wireless communication
• 5G connectivity

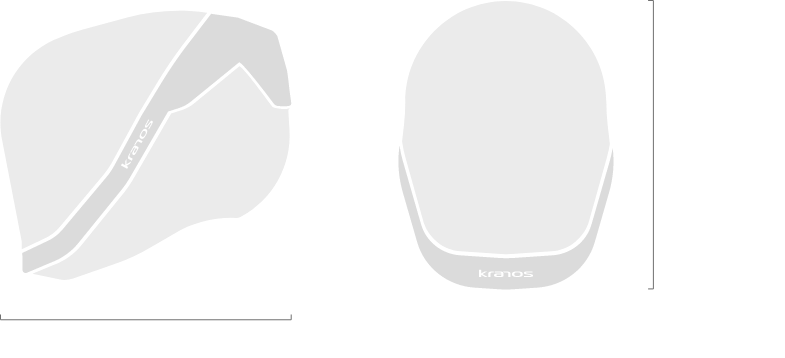

size and weight

helmet_dimensionssize_and_weight

• Height: 23,50 cm (9.25 in)
• Width: 23,50 cm (9.25 in)
• Depth: 23,50 cm (9.25 in)
• Weight: 23,50 cm (9.25 in)

camera

• Up to 60 FPS 4K front facing camera*
• Internal face-recording camera*
• Telephoto camera with optical and digital zoom up to 6x*
• Thermal camera sensor*
• LIDAR 3D scanning sensor

splash, water and
dust protection

• Helmet tear off visor covers to protect against dust and scratches
• "Air-Wiper" technology against external droplets

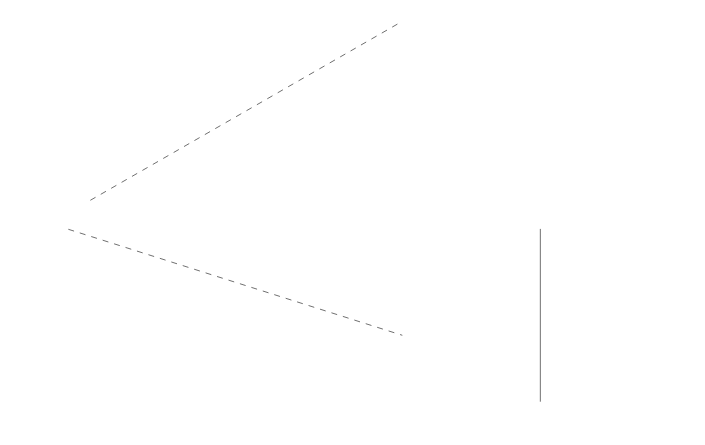

external buttons
and connectors

• Device status button
• Light control
• Volume control
• Customizable touch buttons

helmet_on_offhelmet_on_off

environmental
requirements

• Ambient operating temperature: 0° to 35° C (32° to 95° F)
• Non‑operating temperature: −20° to 45° C (−4° to 113° F)
• Relative humidity: 5% to 95% non-condensing
• Operating altitude: tested up to 3,000 meters (10,000 feet)

optical protection

• 180 degree field of view replaceable front visor
• Anti-fog and fingerprint protection coating

* featured in the advanced model
